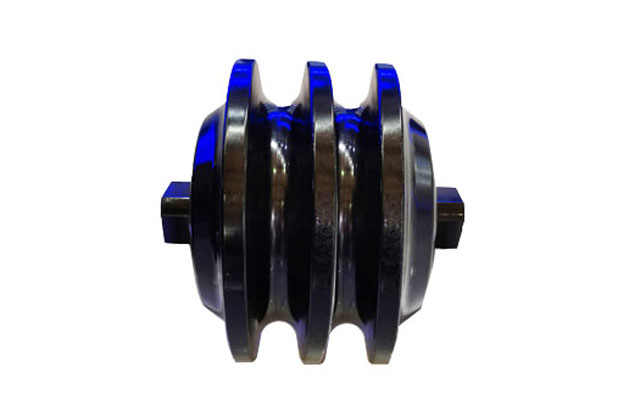

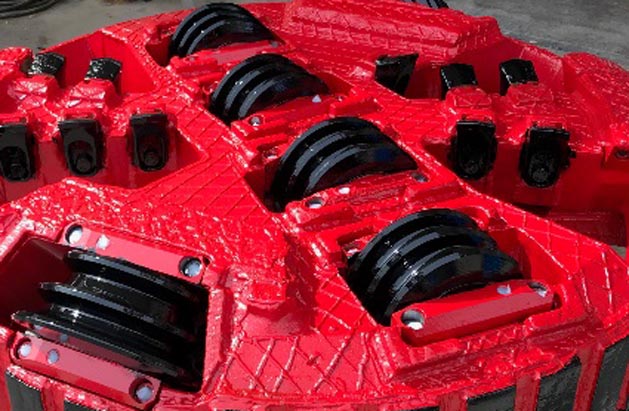

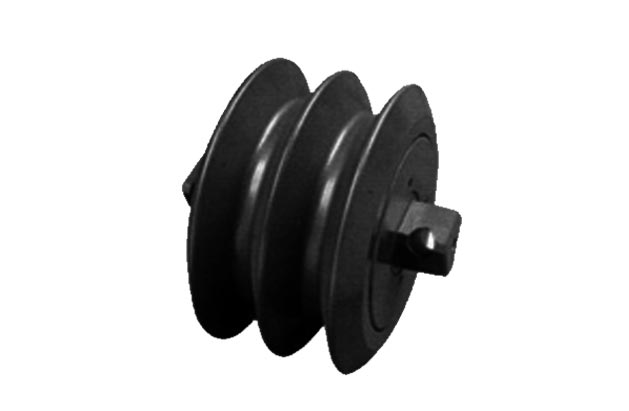

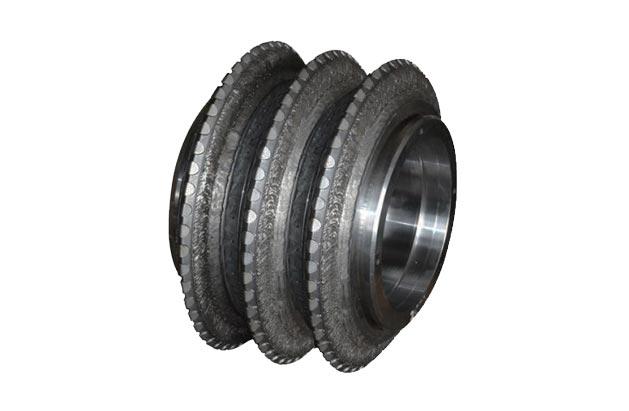

Triple Disc Cutter, a kind of disc cutter with three cutter rings, is mostly mounted micro-tunneling equipment (such as AVN machines, slurry machines, pipe jacking machines), and can be installed on the front, gauge, and center position of the cutter head.
Triple Disc Cutter | Diameter | Load Capacity [tonne] | Cutter ring | Structure | |
product | [inch] | [mm] | |||
| 12 1/2" | 320 | 14 | Optional | Monoblock / Assembly |
12" | 305 | 12-16 | Optional | Monoblock / Assembly | |
11" | 280 | 13 | Optional | Monoblock / Assembly | |
10" | 250 | 10 | Optional | Monoblock / Assembly | |
9" | 220 | 9 | Optional | Monoblock | |
8" | 200 | 8 | Optional | Monoblock | |
7" | 180 | 8 | Optional | Monoblock | |
6 1/2" | 165 | 5 | Optional | Monoblock | |
6" | 150 | 4 | Optional | Monoblock | |
